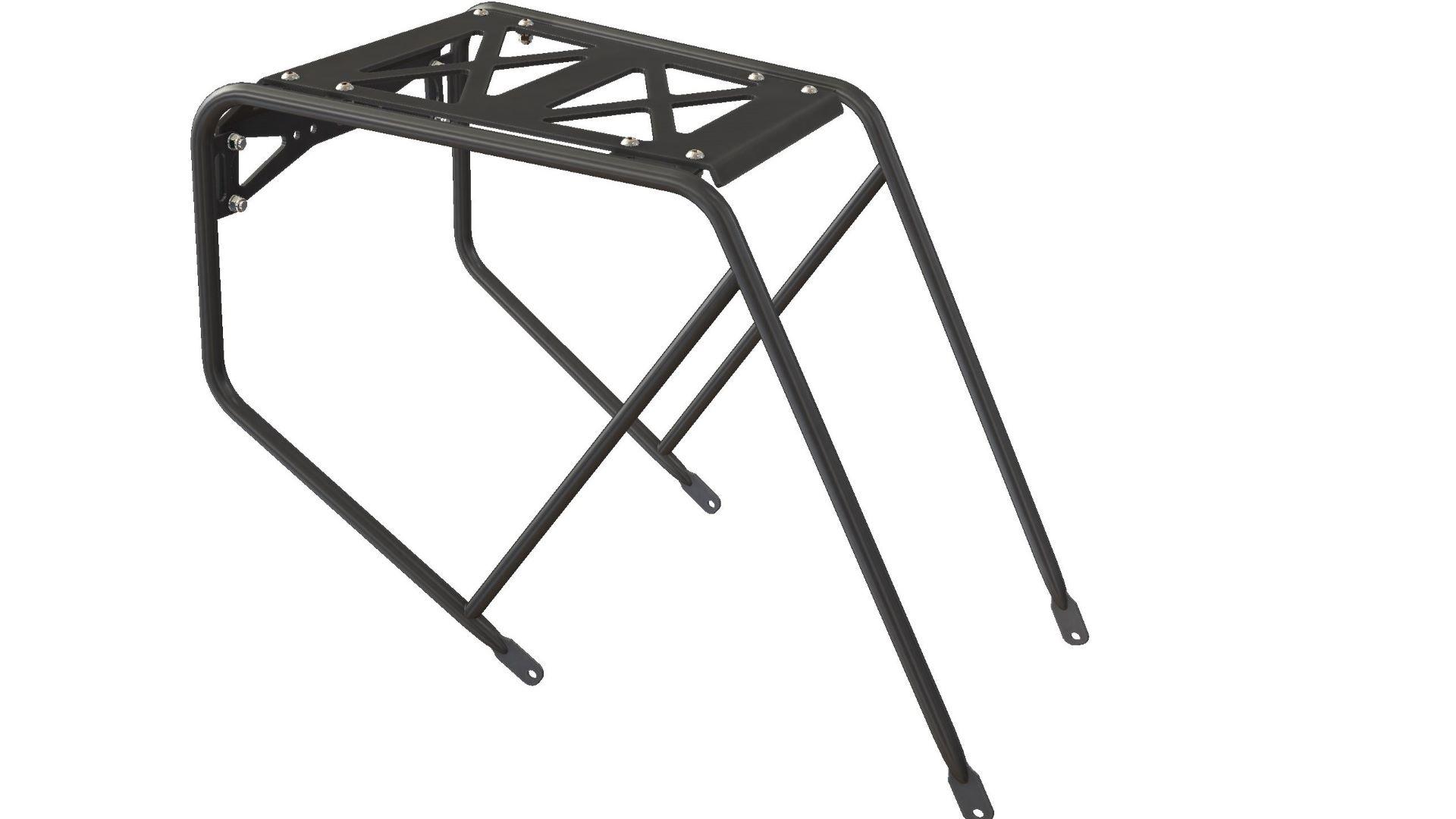

Rear Top rack FAT modular 26"
- Basic characteristics
The Top Rack FAT is a specialized evolution of the modular series. When navigating soft surfaces like snow or sand, the trike's frame and rack are subjected to unique low-frequency vibrations and high-torque stresses. Steintrikes addresses this by using a rigid, multi-triangulated design that ties directly into the heavy-duty swingarm.
Unlike standard racks that are simply "widened," the FAT version accounts for the increased radius of high-volume tires. This ensures that the center of gravity remains as low as possible while still providing enough "mud-room" for debris. It is the gold standard for riders who require a "bomb-proof" setup for transcontinental off-road travel.
- Short description
Built to clear tires up to 4.8" wide, this rack provides the necessary structural integrity for off-road expeditions, snow trekking, and sand dunes where standard racks would fail due to vibration or clearance issues. Reinforced mounting points designed to counteract the increased lateral forces generated by wide-track tires on uneven terrain. Constructed from premium thin-walled steel tubing, offering superior field-repairability and fatigue resistance compared to aluminum. The geometry keeps panniers far enough from the tire sidewalls to prevent mud-drag and tire rub in extreme conditions. Features a widened top platform to stabilize oversized dry bags or heavy expedition gear.
- Compatible Wheel Size : 26" FAT (ISO 559)
- Max Tire Width : Up to 4.8" (approx. 122mm)
- Material : High-strength reinforced alloy / Steel tubing

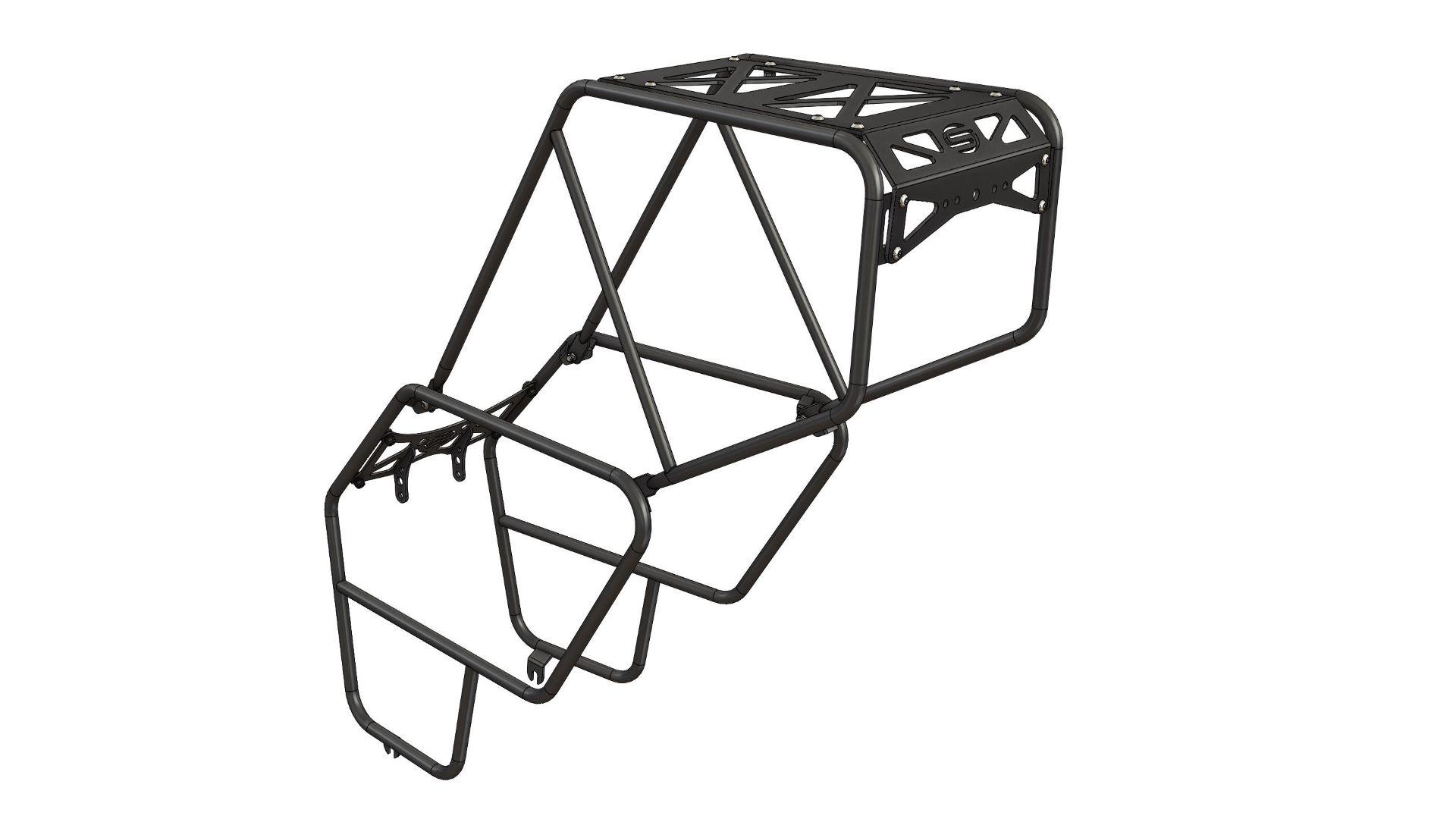

- System Compatibility : Exclusively fits the Lowrider Modular FAT
- Max Payload Support : 30 kg (Maximum allowable weight of cargo on the rack)
- Mounting Hardware : Stainless steel anti-corrosion bolts (included)
- Finish : Industrial Matte Black Powder Coat
